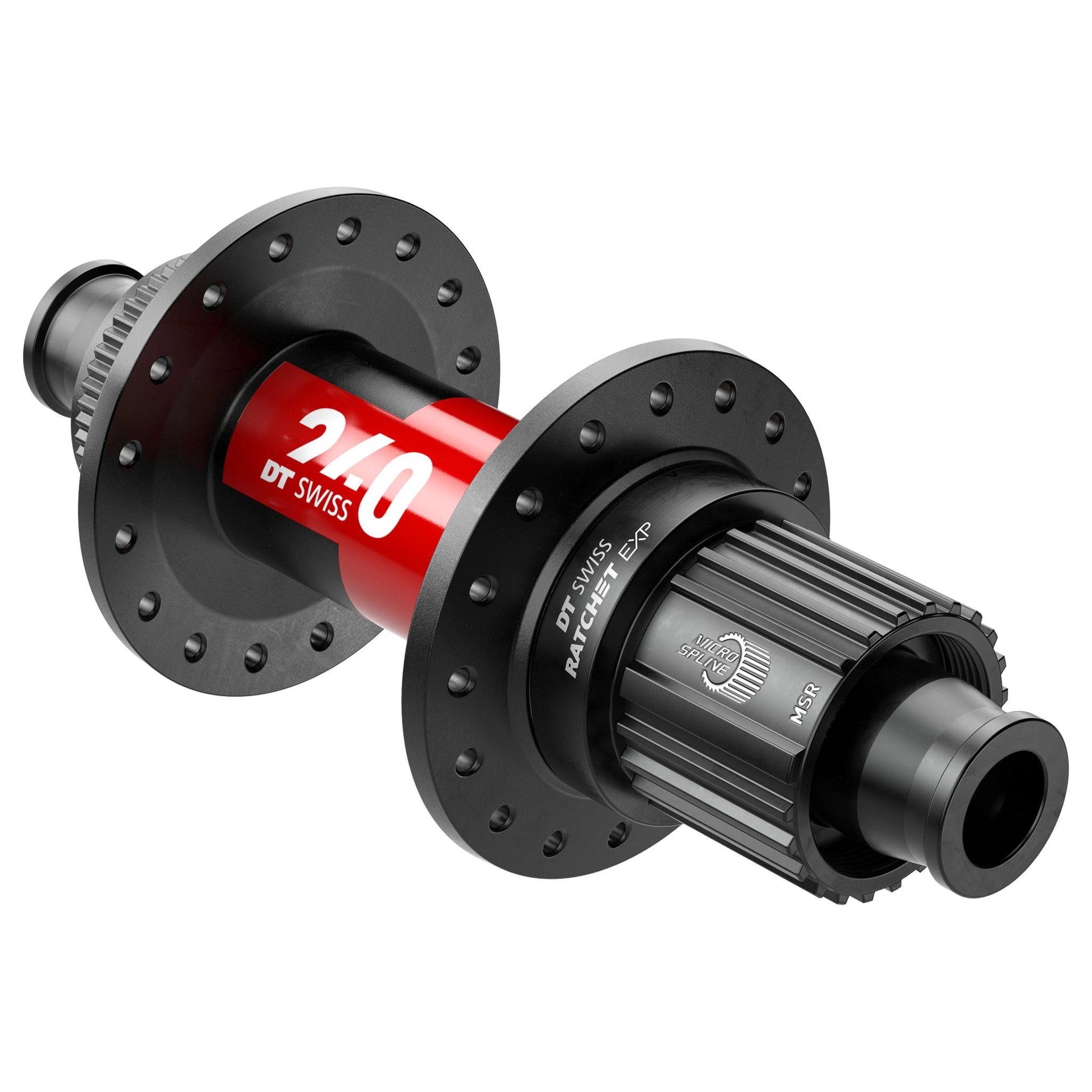

Ratchet EXP (36t) features a fused threaded ring/ratchet and single spring, reducing the number of components for a lighter and more durable freehub system
Integration of drive side bearing into threaded ring widens bearing stance, resulting in 15% greater hub stiffness
With DTs ratchet system, all of the teeth on each side of the ratchets engage simultaneously every time. This creates much smaller point loads and results in the legendary reliability of Ratchet System hubs
Center Lock disc
Steel cartridge bearings
Refined end caps allow for easier disassembly
Micro Spline versions enable the use of MTB cassettes on 12x142 road hubs with proper chainline
HG 11sp road: Compatible with HG splined Shimano/SRAM 11sp road cassettes. Also compatible with Shimano/SRAM 8-10sp cassettes with spacer
DT Swiss spoke calculator: | model | 240 EXP |
| front/rear | rear (Micro Spline) |
| axle/spacing (mm) | 12x142 |
| hole | 24 |
| spoke | J-bend |
| brake | Center Lock |
| color | black/red |
| weight | 221g |
